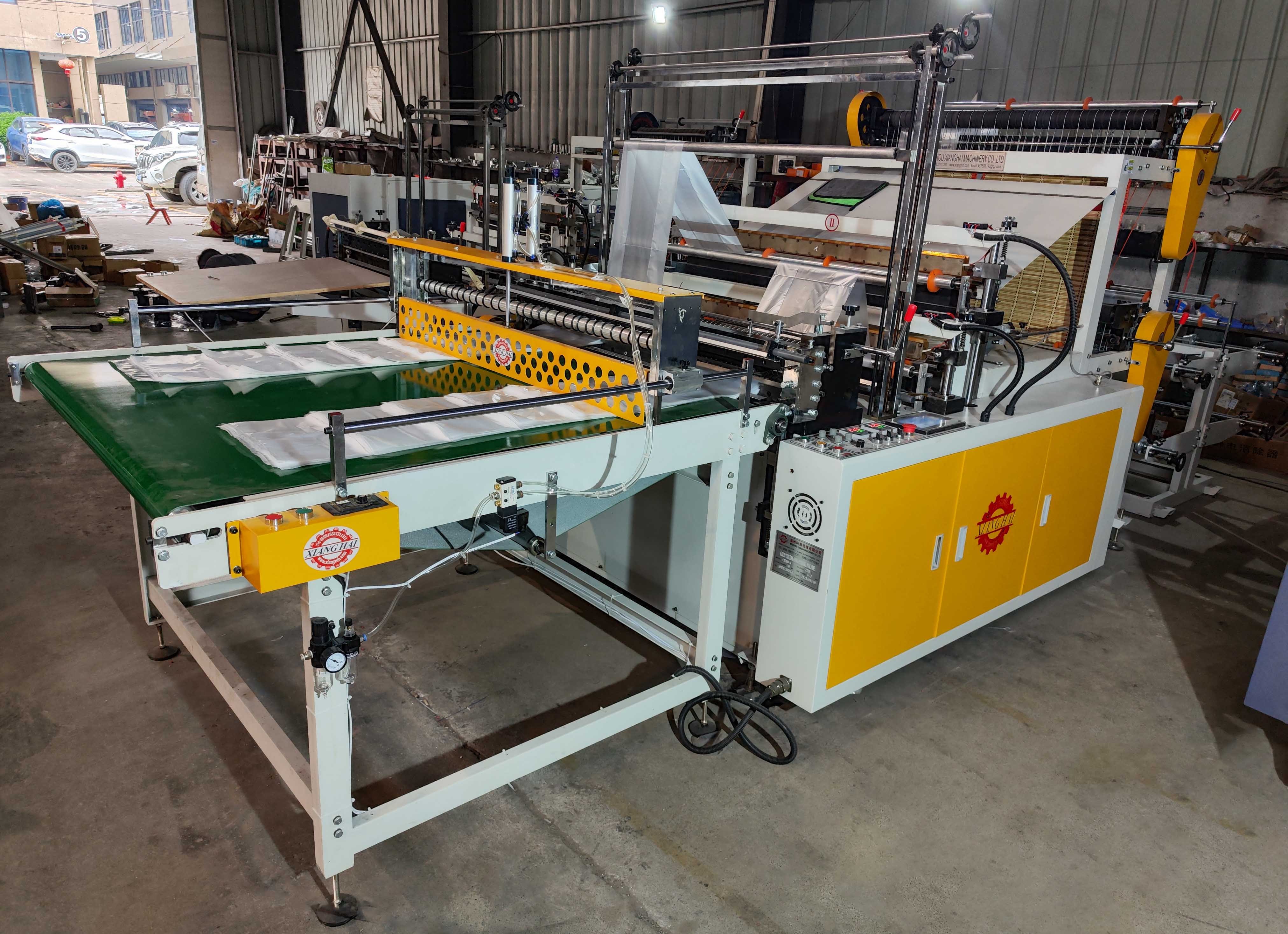

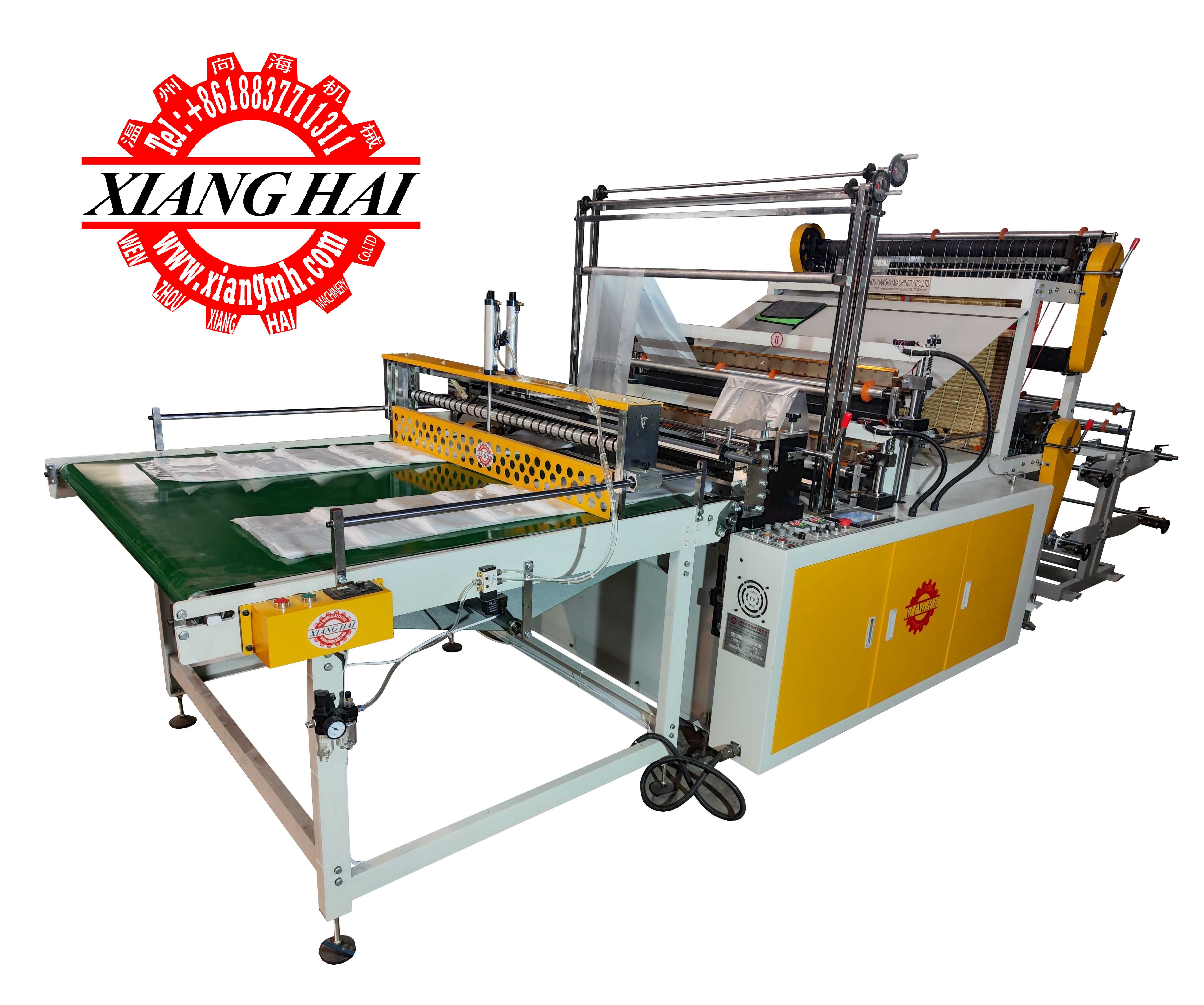

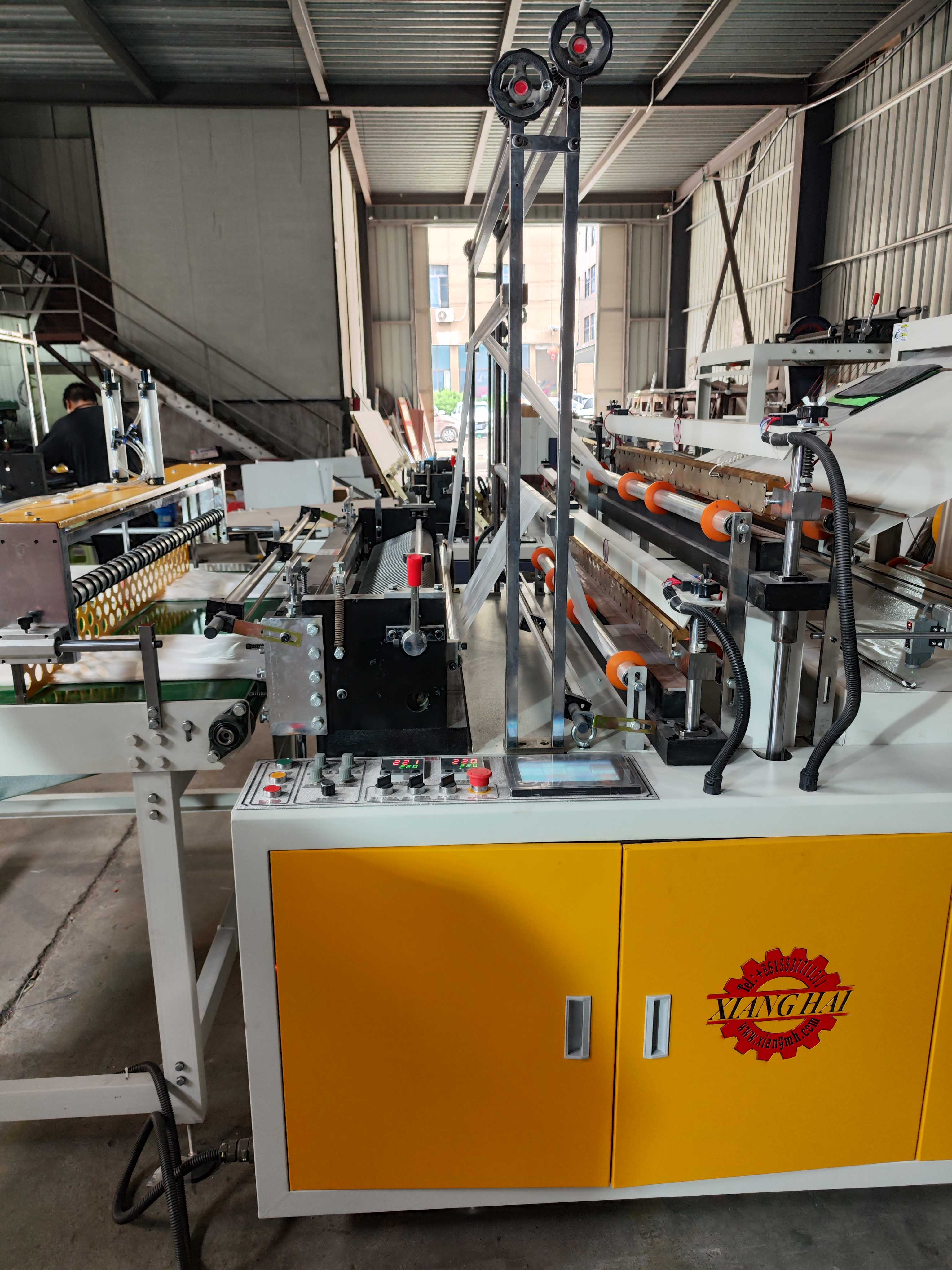

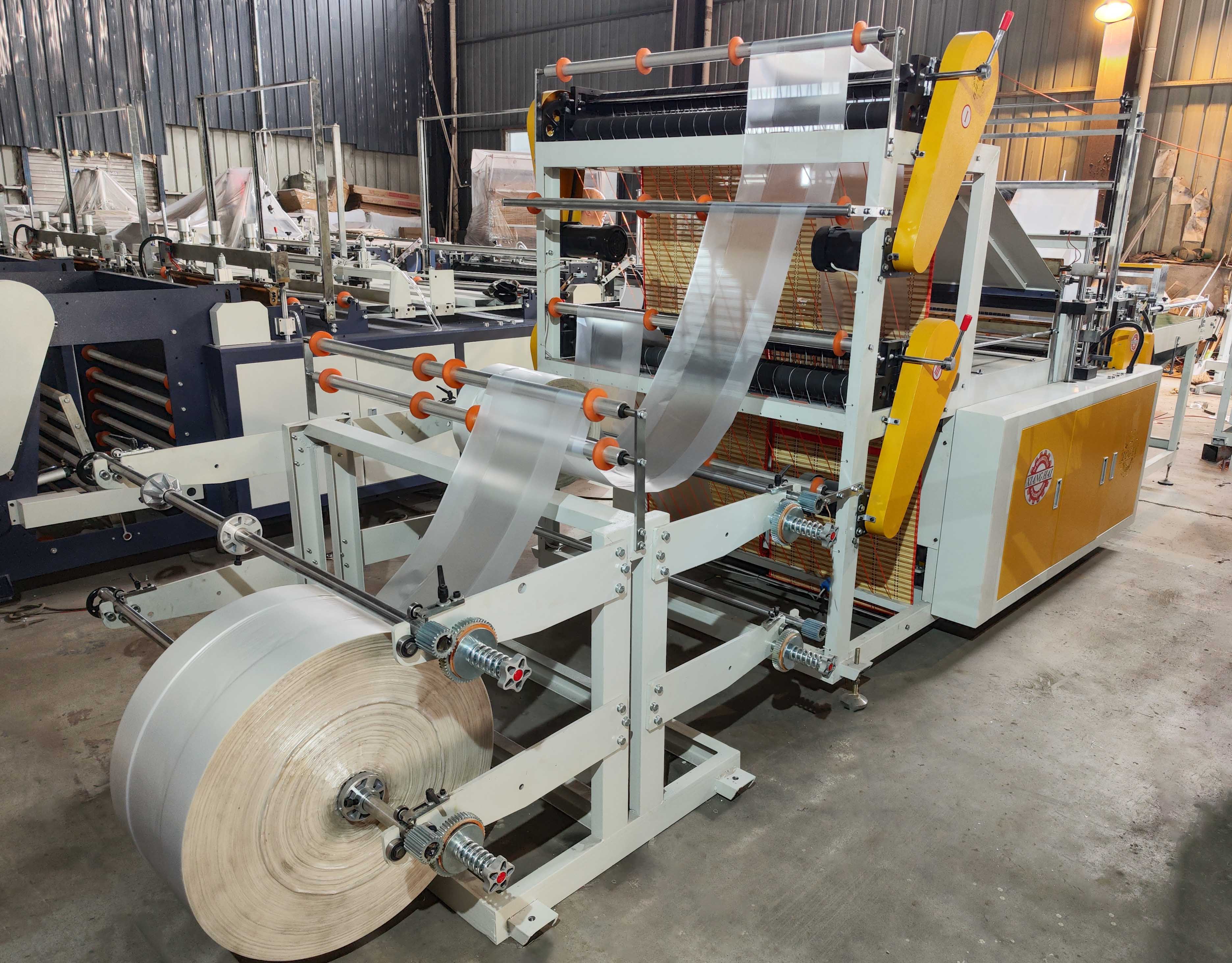

1200 Four Lines Cold Cutting Plastic Bag Making Machine
Insist---Concentration---Innovate---Service
Constant innovation and beyond just to create higher value for you！
Machine Description:
1. Suitable for
substrate: BOPP, PET, aluminum foil, nylon and other plastic composite film multi-layer co-extruding film, aluminum plating
composite film, paper plastic composite film, anti-static composite film.
2.positioning accuracy: ≤±0.5mm
3. Temperature setting range: 0-300℃
4. Total power: 10KW (the actual power is generally about 4KW when just powered on, and about 2KW when heat preservation)
5. Function making ：
flat bag、T shirt bag
Constant innovation and beyond just to create higher value for you！
Machine Description:
1. Suitable for
substrate: BOPP, PET, aluminum foil, nylon and other plastic composite film multi-layer co-extruding film, aluminum plating
composite film, paper plastic composite film, anti-static composite film.
2.positioning accuracy: ≤±0.5mm
3. Temperature setting range: 0-300℃
4. Total power: 10KW (the actual power is generally about 4KW when just powered on, and about 2KW when heat preservation)
5. Function making ：
flat bag、T shirt bag
Cold cutting bag making machine：
Main technical parameters
Main technical parameters
| Type | C1200-4 | |
| Cutting length | 100-2000mm | |
| Cutting width | 1100mm * 2line，500mm * 4line | |
| Cutting knife | 1200mm | |
| Capacity | 120pcs/min * 4 | |
| Main Motor | 2.2 KW | |
| Machine weight | 1770 KG |
